Product parameters

Funtion：Under-voltage, Current Sense Comparator IC

Battery：3-cell NIMH batteries, single-cell Lithium Battery

Vout Range：1.1V-6.5V

Vin Range：1.1V-6.5V

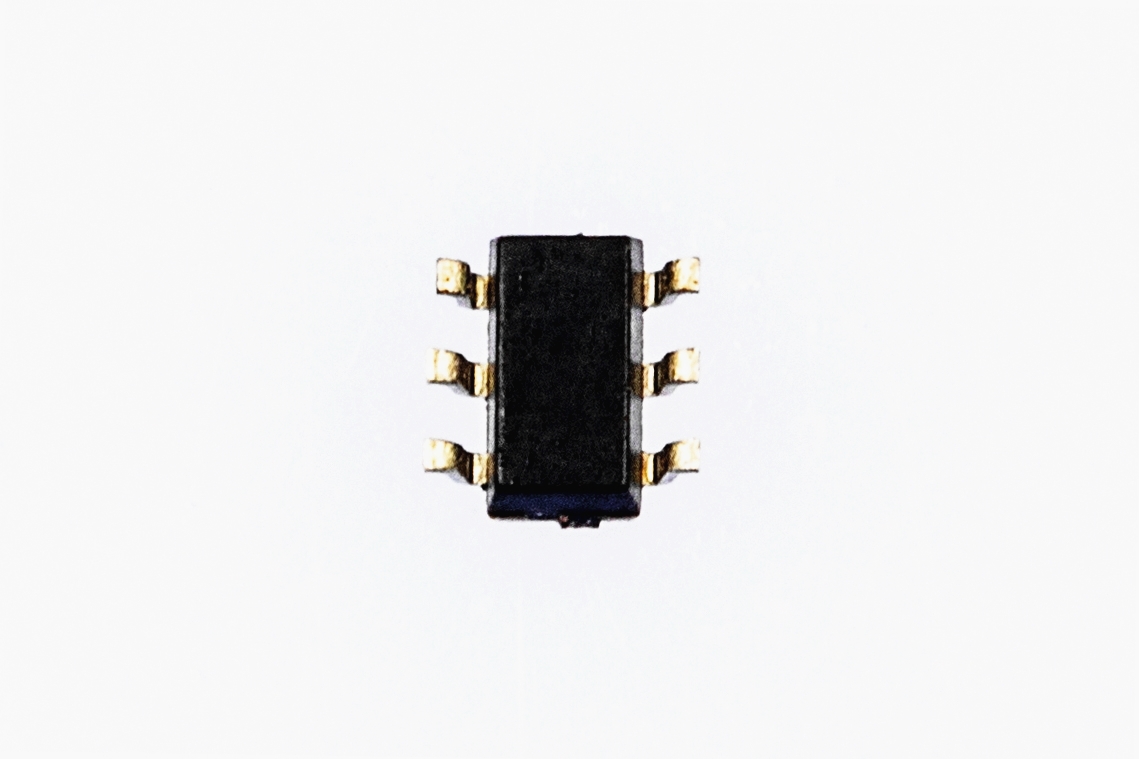

Package：SOT23-6

Threshold：2.75V

Threshold A：±1%

Delayed：100ms

General Descriptions：

CN300 is an integrated circuit with the functions of under voltage protection and overcurrent protection or current sense, it is formed by reference voltage, an under voltage comparator, a current sense comparator and a timer. CN300 consumes little current and is easy to use, it is ideally suitable for the applications of overcurrent protection, current sense or battery discharge management.

CN300 enters under-voltage state if the VCC voltage is below under-voltage threshold for 100ms or above, in which OD pin becomes high, and  pin becomes low. CN300 will not recover from under-voltage state until VCC becomes higher than under voltage threshold by 0.33V for 100ms or above. Once CN300 recovers from under voltage state, OD pin outputs low and  pin outputs high.

If the voltage drop between current sense positive terminal CSP and negative terminal CSN is larger than overcurrent threshold (38mV Typ.) for 9ms or above, CN300 enters overcurrent state, in which OD pin outputs high, and  pin outputs low.

Both under voltage state and overcurrent state are referred to as over discharge state.

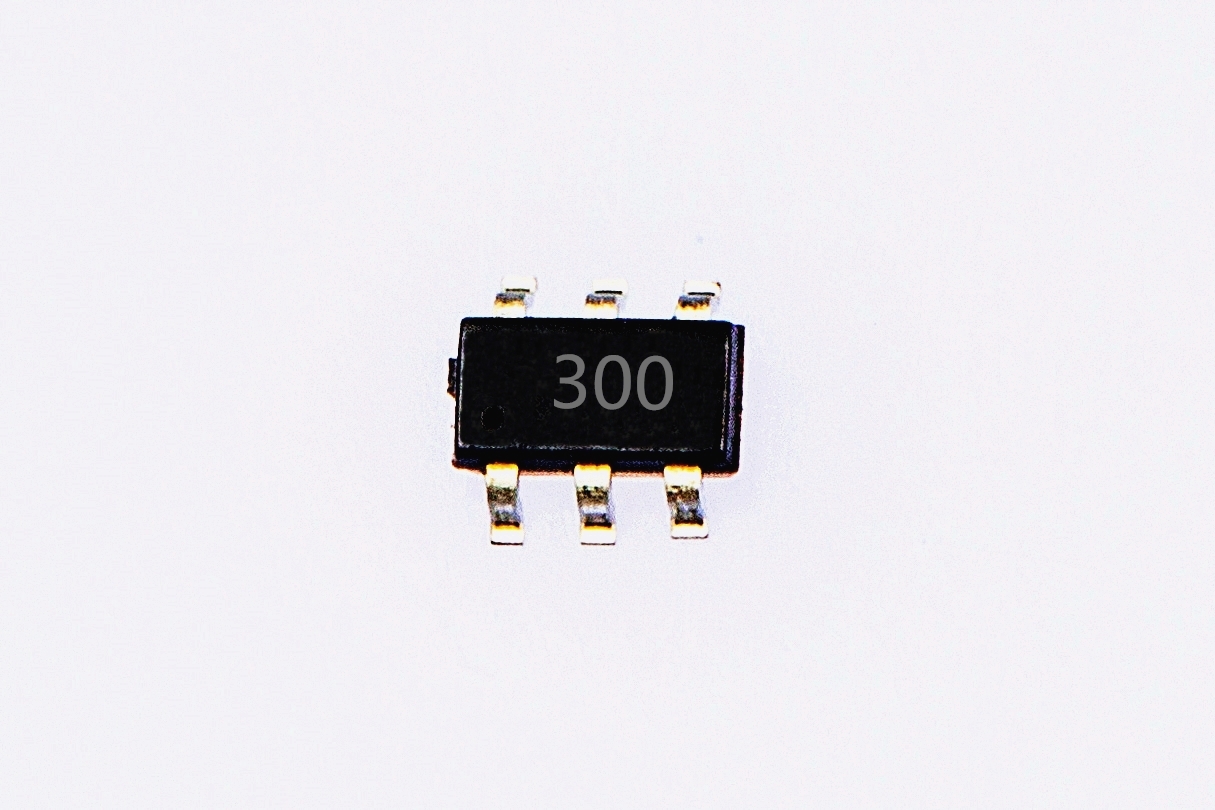

CN300 is available in 6 pin SOT-23 package.

Applications：

l  Over-current Protection

l  Current Sense Comparator

l  Battery Discharge Management for 3-cell NIMH batteries

l  Battery Discharge Management For single-cell Lithium Battery

Features：

l  Low Current Consumption: 4uA

l  Internally Fixed Under-voltage Threshold

l  Valid Output with VCC down to 1.1V

l  Under-voltage Threshold: 2.75V (VCC falls)

l  Under-voltage Threshold Accuracy:±1%

l  Deglitch Time of Under Voltage Detection: 100ms

l  Overcurrent Threshold: 38mV

l  Input Common Mode Voltage of overcurrent detection: 0V to VCC

l  Deglitch Time of Overcurrent Detection: 9ms

l  Active-high and Active-low Outputs

l  Available in SOT-23-6 Package

l  Operating Temperature Range            –40°C to +85°C

l  Lead-free, Rohs-compliant and Halogen-free
